Overview
Chief supplies oil-resistant PTFE (Teflon®) coated fiberglass belts as replacement belts and consumables for tortilla, flatbread and bakery production lines. The base fabric is imported fiberglass cloth fully impregnated with premium PTFE resin, and a special surface treatment resists cooking-oil penetration for longer service life.
Belts run continuously from −70 °C to +260 °C, release dough and oils cleanly, and wipe clean in seconds — less downtime, more uptime. Every belt is made to your specification: width, thickness, color and GSM.
Specifications — Oil-Resistant Series

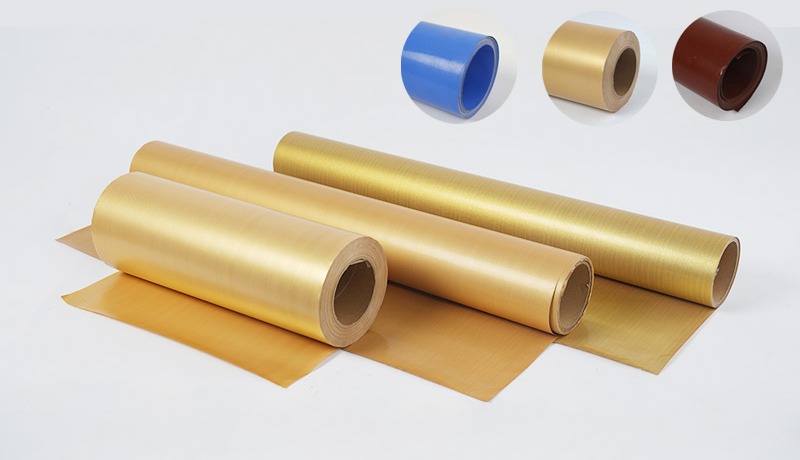

| Model | Width (mm) | Thickness (mm) | PTFE % | Color | Tensile strength N/5cm (warp / weft) |
|---|---|---|---|---|---|
| CP001B | 800 – 1,550 | 0.13 – 0.25 | 65% | Blue | 2150 / 1750 |
| CP002G | 800 – 1,550 | 0.13 – 0.25 | 64% | Gold | 750 / 660 |
| CP003R | 800 – 1,550 | 0.13 – 0.25 | 58% | Rust Red | 1080 / 1050 |
Key Features
Oil-Repellent Surface
Special surface treatment resists cooking-oil penetration — ideal for tortilla and fried-product lines where standard PTFE belts fail early.
Non-Stick & Easy-Clean
Dough, oils and residues release cleanly; belts wipe clean in seconds for less downtime between products.
Wide Temperature Range
Continuous service from −70 °C to +260 °C — from freezer conveyors to hot-product transfer.
FDA Food-Grade Safe
Food-contact safe, REACH / ROHS certified. Over 100,000 folding cycles in flex-fatigue testing.
Applications

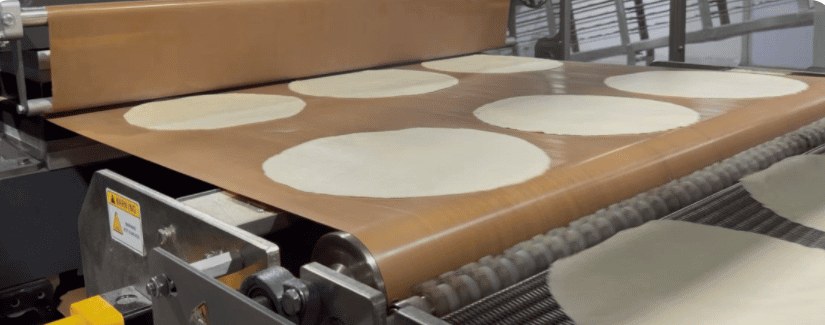

- Tortilla & corn tortilla line conveyor belts
- Pita / naan / lavash forming, cooling & transfer belts (conveyor sections)
- Bakery tray, pan & microwave liners
- Food drying, thawing & sealing belts
Made to Your Spec
Width, thickness, color and GSM are fully customisable, up to 3,400 mm wide. Our engineers support belt selection for your product and line setup, and custom-made belts ship within 1 week.
Product flyer (A4, PDF): Download the PTFE belt flyer — models, specifications and applications on one page.
Why Chief
We run these belts on our own tortilla and flatbread lines, so we select and size them from production experience — not just a data sheet. One supplier for the line and the wearing parts keeps fit, tracking and delivery predictable.
Frequently Asked Questions
Can you match the belt to my existing line or equipment brand? Yes — we supply belts to your measured width, length and joint type, whether for Chief lines or other equipment.
What information do you need for a quote? Width, length, thickness (or the old belt's datasheet), joint type and the product/temperature the belt will run.
How fast can you deliver? Custom-made belts ship within 1 week; selection support is included.
